Vehicle Telematics · Factory-Fitted Automotive-Grade

5G V2X OBU
Factory-Fitted Unit

An integrated connectivity terminal with T-Box capabilities

Designed for factory-fitted mass production in passenger and commercial vehicles, integrating 5G Uu cellular communication, C-V2X PC5 direct communication and T-Box remote control into a single automotive-grade terminal. With a built-in ITS application protocol stack supporting BSM/SPAT/MAP and other V2X message processing, it enables real-time coordination among vehicle-to-vehicle (V2V), vehicle-to-infrastructure (V2I) and vehicle-to-network (V2N), helping OEMs build a safer, more efficient, continuously OTA-evolving connected vehicle ecosystem.

Get Technical Documentation Technical Specifications

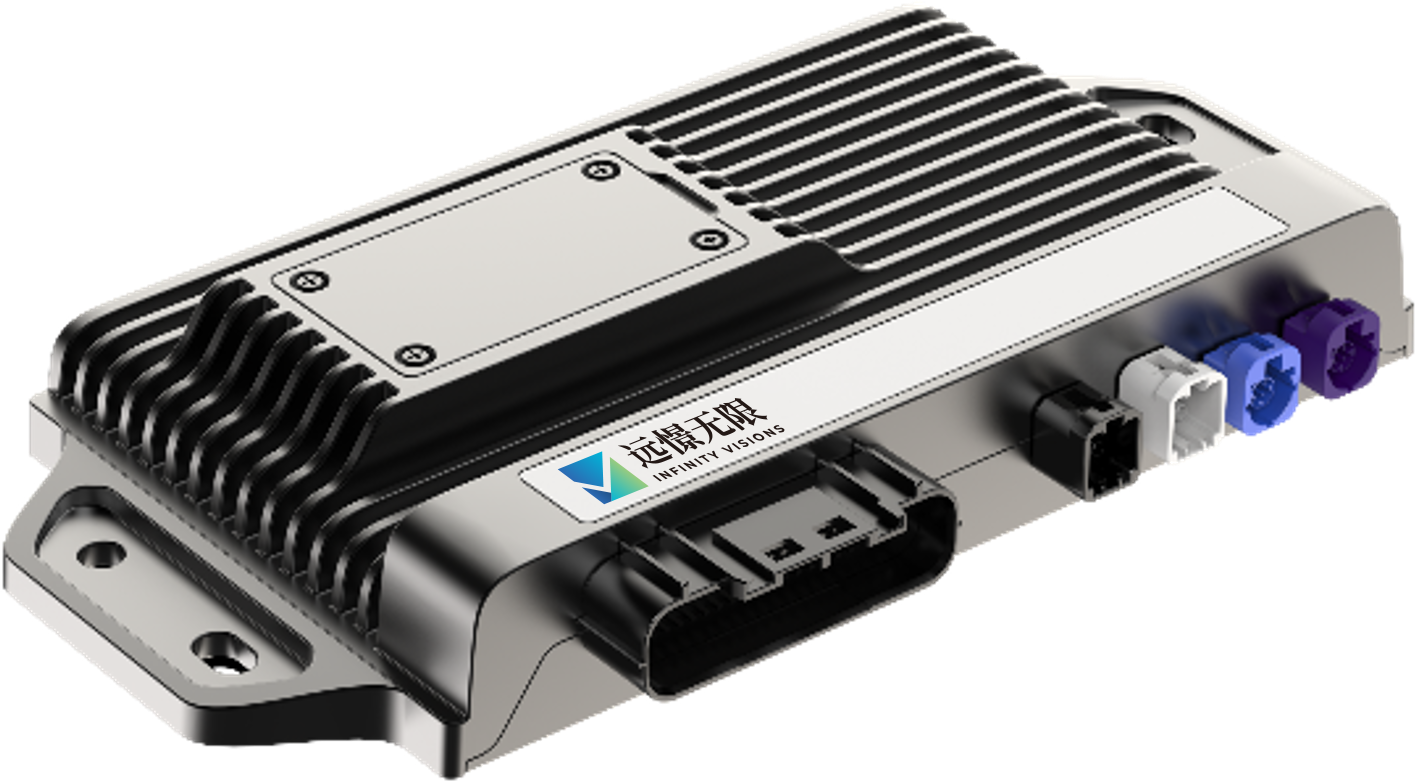

Infinity-Visions 5G V2X OBU (Factory-Fitted)
5G + C-V2X
Communication Mode
Built-in T-Box
Function Integration
DC 9–36V
Wide Voltage Input
-40~85℃
Wide Temperature Operation
Infinity-Visions 5G V2X OBU (Factory-Fitted)
Product Overview

One Terminal per Vehicle — Connectivity and Control Fully Integrated

The 5G V2X OBU is more than a communication terminal — it is the vehicle’s "collaborative perception brain." By collecting vehicle data via in-vehicle CAN/CAN FD and Ethernet, and combining 5G, C-V2X PC5, WiFi, Bluetooth and other wireless means, it interacts in real time with RSUs and other vehicle OBUs, supporting green-wave passage, blind-spot warnings, vulnerable road user alerts and other advanced V2X coordination applications.

  • 5G Uu + C-V2X PC5 dual-mode communication, combining cellular wide-area coverage with low-latency vehicle-to-vehicle / vehicle-to-infrastructure direct links
  • Embedded ITS application protocol stack, supporting transmission and reception of V2X standard messages such as BSM, SPAT and MAP
  • Integrates T-Box capabilities: remote control, emergency call, vehicle diagnostics, posture detection and OTA upgrades
  • Automotive Ethernet + CAN/CAN FD bus, GPS/BeiDou dual-mode positioning, WiFi hotspot and Bluetooth
Communication Architecture

Uu + PC5 Dual-Mode Communication Architecture

The OBU simultaneously supports 5G Uu cellular links and C-V2X PC5 direct links. Uu handles high-bandwidth data backhaul and remote operations, while PC5 handles millisecond-level low-latency coordination among vehicle-to-vehicle, vehicle-to-infrastructure and vehicle-to-pedestrian, together forming the integrated vehicle-road-cloud communication foundation.

C-V2X Uu Communication Architecture: Vehicle accesses the cellular network via a 5G base station (eNodeB) to enable vehicle-to-network communication

Uu Communication · Vehicle-to-Network

The vehicle accesses the cellular network via a 5G base station, supporting OTA upgrades, high-precision map downloads, HD video backhaul and remote driving, and providing a high-bandwidth backhaul channel for cloud-platform big-data analytics.

C-V2X PC5 Direct Architecture: Vehicles, road-side units (RSU) and pedestrians achieve low-latency coordination through PC5 direct links

PC5 Communication · Vehicle-to-Vehicle / Vehicle-to-Infrastructure / Vehicle-to-Pedestrian

Vehicles, RSUs and pedestrians connect via C-V2X PC5 direct links to broadcast traffic-signal status, road hazard warnings and vulnerable road user protection, achieving millisecond-level low-latency coordination without relying on base stations.

Core Advantages

Core Advantages

From communication protocols to chassis interfaces, it delivers an integrated factory-fitted terminal for OEMs that combines intelligent connectivity with remote control.

5G + C-V2X Dual-Mode Communication

Simultaneously supports 5G Uu cellular wide-area communication and C-V2X PC5 direct communication (5905–5925 MHz), meeting dual requirements for connected vehicles and V2X coordination, and compatible with industry standards such as T/CSAE 53 and T/CSAE 157.

T-Box Remote Control

Integrates typical T-Box functions such as remote start, emergency call, posture detection, vehicle diagnostics and WiFi hotspot, and supports OEM TSP platforms and 5G APN integration.

Low-Latency V2X Coordination

PC5 direct-link air-interface latency can reach the millisecond level, suitable for forward collision warning, traffic-light information push, vulnerable road user alerts and green-wave passage.

In-Vehicle Interface Expansion

Provides interfaces such as automotive Ethernet, CAN/CAN FD bus and UART, facilitating integration with body domain controllers, TSP platforms, sensors and ADAS systems.

Information Security Assurance

Built-in security chip, supporting Chinese national cryptographic algorithms SM2/SM3/SM4 and international encryption algorithms, meeting national standards for V2X information security and two-way identity authentication.

Automotive-Grade Reliability

Designed to automotive-grade standards, supporting DC 9–36V wide-voltage power input and -40℃ ~ +85℃ wide-temperature operation, with IP54 protection and anti-vibration and anti-electromagnetic-interference capability.

V2X Scenarios

V2X Full-Scenario Coordination

Based on C-V2X PC5 direct links and 5G Uu cellular dual links, it builds a real-time information interaction network among vehicles, infrastructure, pedestrians and the cloud, covering safety, efficiency and autonomous-driving coordination scenarios.

V2V Vehicle-to-Vehicle Coordination

BSM messages broadcast the vehicle’s position, speed and heading in real time, supporting forward collision warning, emergency braking alerts, platooning and beyond-line-of-sight coordination.

V2I Vehicle-to-Infrastructure Coordination

Receives SPAT signal phases, MAP maps and road event information pushed by RSUs, enabling traffic-light countdown, green-wave speed guidance and work-zone occupancy warnings.

V2P Vulnerable Road Users

Combined with roadside perception, it identifies vulnerable road users such as pedestrians and non-motorized vehicles in advance, issuing blind-spot and crossing warnings to the driver to effectively reduce collision risk.

V2N Vehicle-to-Network Coordination

Through real-time interaction with the TSP platform over 5G Uu, it supports remote control, vehicle diagnostics, high-precision map delivery, OTA upgrades and traffic-flow data aggregation analysis.

Specifications

Technical Specifications

Key technical indicators of the factory-fitted automotive-grade terminal, for reference by OEMs during integration and solution evaluation.

Product Form5G V2X OBU (Factory-Fitted) (with T-Box)
Communication Mode4G、5G、C-V2X
PC5 Operating Frequency Band5905 MHz ~ 5925 MHz
Transmit Power23 dBm(excluding antenna gain)
Other Wireless CommunicationsWiFi, Bluetooth
External InterfacesAutomotive Ethernet, CAN bus, etc.
PositioningGPS / BeiDou Dual-Mode Positioning
Supply VoltageDC 9–36V
Operating Temperature-40℃ ~ +85℃
Storage Temperature-40℃ ~ +90℃
Protection RatingIP54
Dimensions243 mm × 136 mm × 33 mm
SecuritySupports security chip and Chinese national cryptographic algorithms SM2/SM3/SM4 and international encryption algorithms
CertificationMeets automotive-grade design and V2X / Connected Vehicles related certification requirements
T-Box CapabilitiesWireless internet, WiFi hotspot, remote start, emergency call, posture detection, remote diagnostics
Use Cases

Application Scenarios

Aimed at OEM factory-fitted mass production and fleet operations, providing integrated connectivity capabilities for passenger vehicles, commercial vehicles and special-purpose vehicles.

Passenger Vehicle Factory-Fitted

A factory-fitted mass-production terminal for OEMs, providing V2X cooperative warnings, green-wave speed guidance, TSP remote control and OTA upgrades, creating an evolving intelligent connected driving experience.

Commercial Vehicles / Fleets

For scenarios such as heavy trucks, logistics vehicles and mining trucks, providing vehicle status monitoring, driving behavior analysis, remote diagnostics and platooning, helping fleets reduce costs and improve efficiency.

Intelligent Public Transit

Coordinating with roadside RSUs to achieve transit signal priority, blind-spot warnings, pedestrian crossing reminders and precise stop docking, improving the intelligence and safety of public transport.

Special-Purpose Vehicles

Factory-fitted connectivity and remote dispatch for special-purpose vehicles such as sanitation, patrol, Robotaxi and driverless shuttle vehicles, supporting autonomous-driving testing and operational supervision.

Cooperation

Cooperation Process

From requirements communication to batch delivery, providing OEM-focused customized development and integration support services.

01

Requirements Communication

Clarify vehicle platform, V2X scenarios, T-Box functions, interface protocols, certification requirements and delivery plans.

02

Solution Confirmation

Confirm hardware architecture, antenna layout, software protocol stack, vehicle interfaces and cloud platform integration plans.

03

Prototype Unit

Prototype fabrication, bench testing, vehicle integration debugging and V2X/T-Box scenario verification.

04

Mass Production & Delivery

Certification support, production line ramp-up, mass production and after-sales technical support.

Get Product Documentation & Quote

Infinity-Visions’ professional team is always ready to provide consulting services, understand your needs and offer a customized 5G V2X OBU factory-fitted solution.
